2D Barcode Scanner Breakout Discount Release Dates

The DYScan DE2120 is one of the coolest little barcode scanners we’ve ever seen. This tiny “scan engine” will read 20 different barcode symbologies — both 1D and 2D! This is achieved by using a camera coupled with on-board image processing to identify and decode everything from UPC codes to QR codes. The module also features two LEDs: one for illumination and one to project the red line that you’re used to seeing from laser-based scanners.

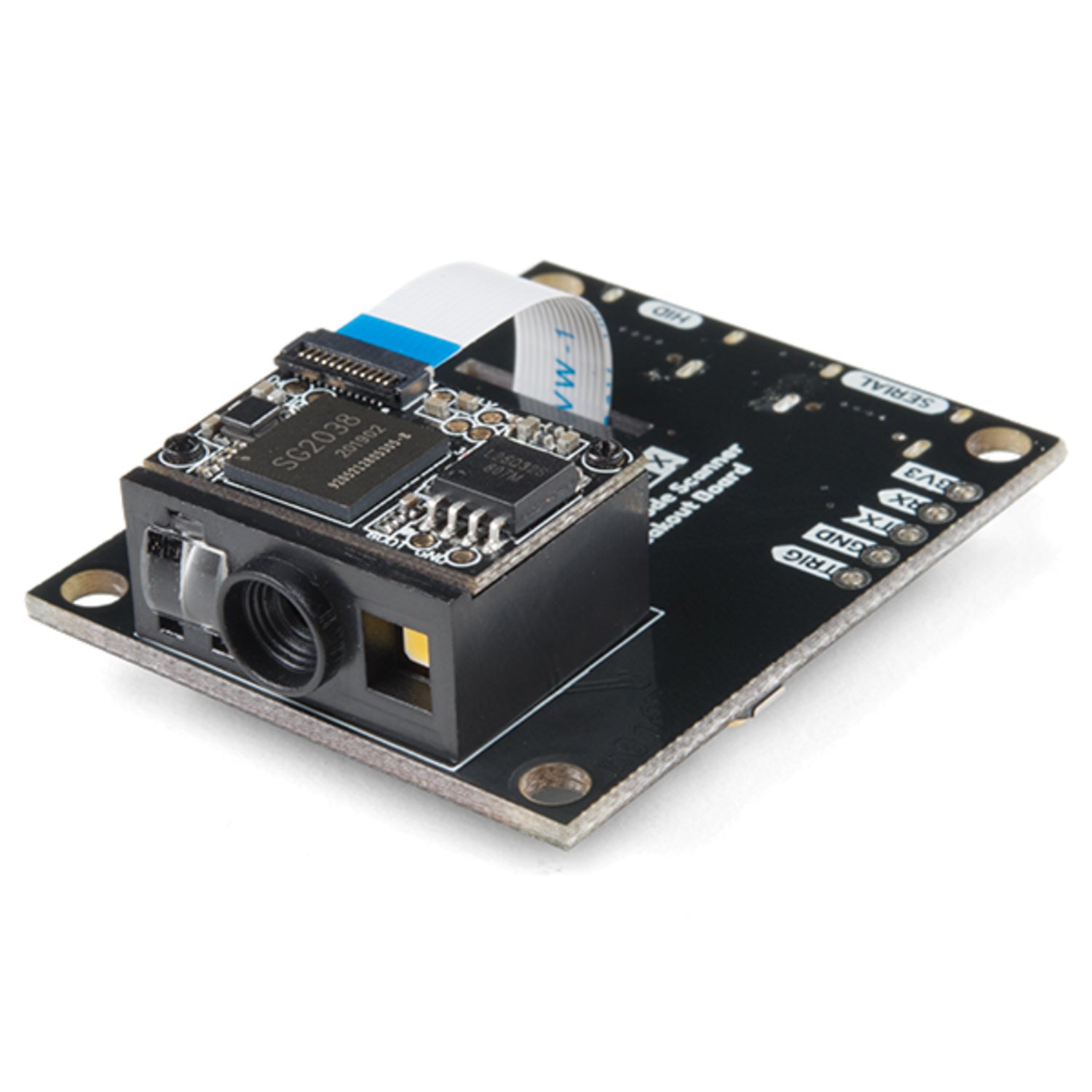

This breakout board makes it easy to explore all of the capabilities of the DE2120 without dealing with finicky flat flex cables. The scanner’s USB interface is exposed via one of the two on-board USB-C connectors, the other is connected to the TTL interface through a CH340C USB-to-Serial bridge. A buzzer and status LED are connected to the module through appropriate drive circuits and a pushbutton tactile switch is provided on the “trigger” pin. When you’re ready to incorporate the module into your embedded project, you can leverage the 5 pin header for direct access to the TTL serial pins, power pins, and trigger input.

The module can be configured either by using the serial interface or by scanning command barcodes found in the datasheet.

Experimental Product: SparkX products are rapidly produced to bring you the most cutting edge technology as it becomes available. These products are tested but come with no guarantees. Live technical support is not available for SparkX products. Head on over to SparkFun’s forum for support or to ask a question.
