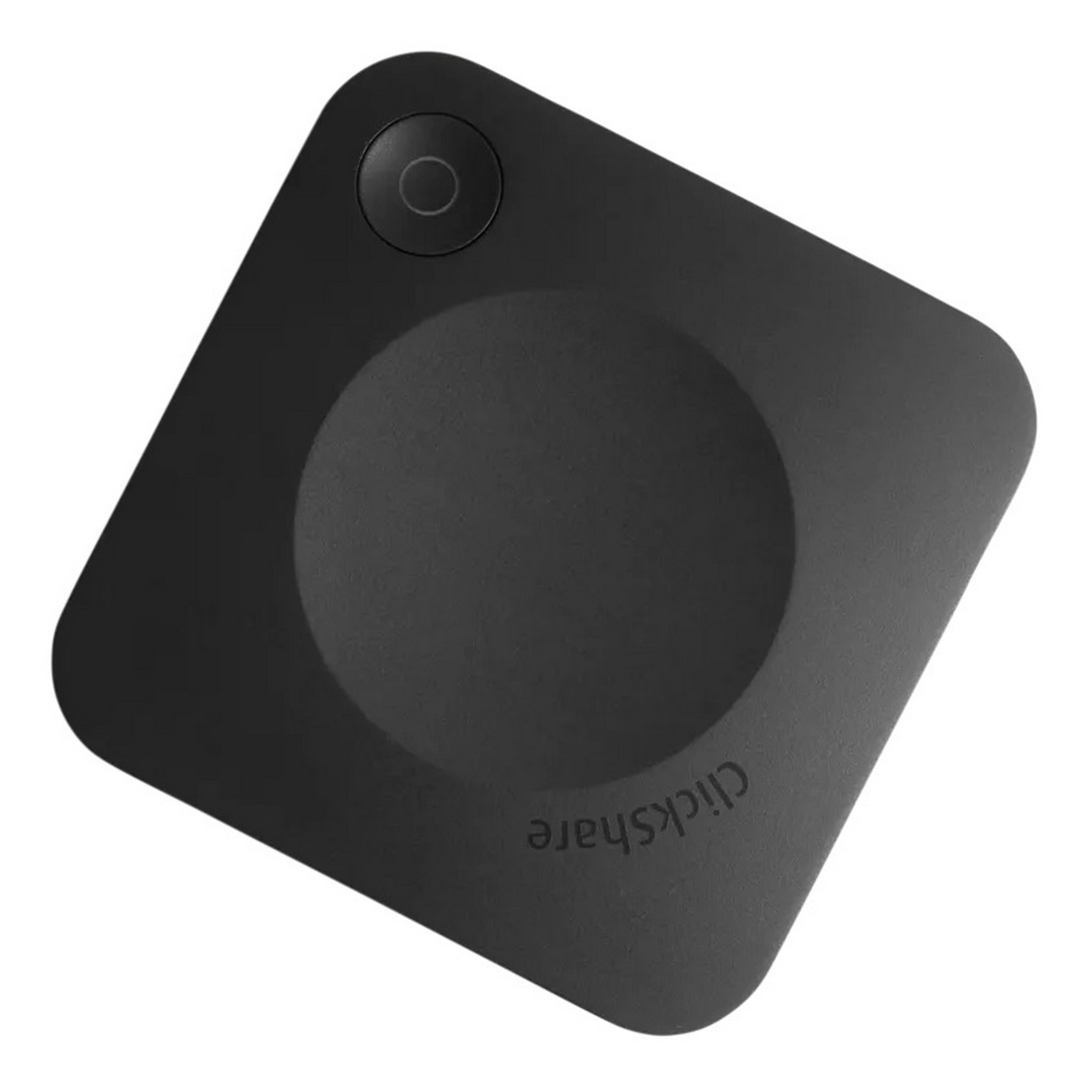

Barco ClickShare C‑5 Gen 2 Wireless Conferencing System For Nice Online

The Barco ClickShare C‑5 Gen 2 Wireless Conferencing System revolutionizes the way small meeting rooms and huddle spaces collaborate by providing a seamless and wireless experience. With a single click in the ClickShare App, both you and your guests can effortlessly share content on the room display from any laptop or mobile device. This device offers a comprehensive Bring Your Own Device (BYOD) experience, enabling screen mirroring through Airplay, GoogleCast, and Miracast, ensuring compatibility with various platforms.

Key Features

• The ClickShare C-5 enables wireless collaboration in small meeting rooms and huddle spaces.
• Users can easily share content to the room display with a single click in the ClickShare App.
• It supports both laptops and mobile devices, providing a full BYOD experience.
• Screen mirroring is available with Airplay, GoogleCast, and Miracast.
• The video outputs support 4K UHD resolution at 30Hz.
• It offers HDMI 1.4b and USB-C DisplayPort 1.2 (only Gen2) connectivity options.
• The audio output is through HDMI.
• The reach can be adjusted with signal strength modulation, with a maximum distance of 30m (100 ft) between the ClickShare Button and ClickShare Base Unit.
• It operates on the 2.4 GHz and 5 GHz frequency bands.
• DFS channels are supported in select countries.

Technical Specifications

ClickShare Base Unit dimensions
Dimensions (HxWxD)
34 mm x 135 mm x 135 mm
Power supply
Standard 110/220 V AC plug or USB-C (only Gen2)
Power consumption
Operational: 5-10W, 24W Max
Weight
900 gr
General specifications
Operating system
Windows 10 and higher macOS 11 (BigSur) and higher
Android v9 and higher (ClickShare App) *
iOS 12 and higher (ClickShare App) *
Video outputs
4K UHD (3840*2160) @ 30Hz. HDMI 1.4b or USB-C DisplayPort 1.2 (only Gen2)
Audio output
HDMI
USB
1 X USB-A, 1 X USB-C
ClickShare Buttons
0
ClickShare App
Desktop & Mobile
Native protocols
Airplay, Google Cast, Miracast
Maximum number of simultaneous connections (with Buttons and/or App)
32
Noise Level
Max. 25dBA @ 0-30 Degrees C
Max. 30dBA @ 30-40 Degrees C
Authentication protocol
WPA2-PSK in standalone mode
WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
Wireless transmission protocol
IEEE 802.11 a/g/n/ac and IEEE 802.15.1
Reach
Adjustable with signal strength modulation; max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit Frequency band 2.4 GHZ and 5 GHz
Frequency band
2.4 GHZ and 5 GHz (DFS channels supported in select number of countries)
Connections
1x Ethernet LAN 1Gbi
1x USB-C 2.0 (front); 1x USB-A 2.0 (front) – only Gen2: 1x USB-C 3.0 (front); 1x USB-A 3.0 (front)
Temperature range
Operating: 0 Degrees C to +40 Degrees C (+32 Degrees F to +104 Degrees F)
Max: 35 Degrees C (95 Degrees F) at 3000m
Storage: -20 Degrees C to +60 Degrees C (-4 Degrees F to +140 Degrees F)
Humidity
Storage: 0 to 90% relative humidity, non-condensing
Operation: 0 to 85% relative humidity, non-condensing
Anti-theft system
Kensington lock
Certifications
FCC/CE
Room Dock (peripheral support)
No
Local view
Local view of the room display only
Network connection
LAN & WiFi
Management and reporting
Yes
Warranty
1 year standard. 5 years coverage via SmartCare
