Barco ClickShare iPad Connectivity Device Browse

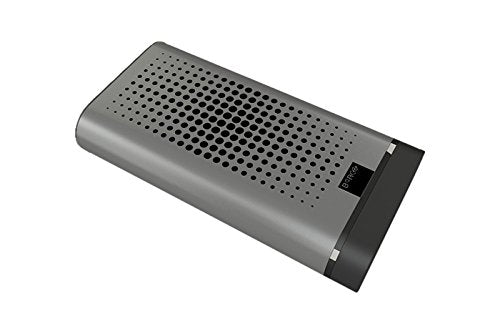

Barco R9861001 ClickShare iPad Connectivity Device

The ClickShare Link offers the possibility to connect an iPad to the ClickShare system. When used, the iPad behaves like an additional laptop. iPads are becoming increasingly important as mobile meeting room devices, as they are small and extremely easy to use. The ClickShare Link allows users to get the content from the iPad touchscreen to the large meeting room screen. There are no limitations to the content to be displayed: what you see on the iPad screen is shown “as is”. However, note that the ClickShare Link only streams video, so sound is not supported.

Key Features

• Option 1: connection via cable
• Option 2: connection via Apple TV
• Wireless
• The user needs to activate AirPlay on the iPad
• 1 iPad at a time, together with other laptions in the composition

Technical Specifications

Dimensions
116 mm x 60 mm x 23 mm (4.57” x 2.36” x 0.91”)
Weight
< 250g
Connection with Base Unit
USB
Video Input
Single link DVI
Video Output
USB mini type B
Power
Using external power adaptor (included in the package):
DC output: 5V, 2A
AC input: 100-240V, 50-60 Hz, 0.36A
Wall-plug type
Included AC clips:
types A, C, G and I for world wide coverage
Power consumption
Maximum 5W
iPad, iPhone and Android compatibility
Support for iPad via cable or Apple TV
HDMI and/or DVI cable not included in the package
Audio
No audio
HDCP
Not supported
Weight
170 g
Included in the package
HDMI to DVI convertor
3ft USB cable
DC adaptor
ClickShare Link
