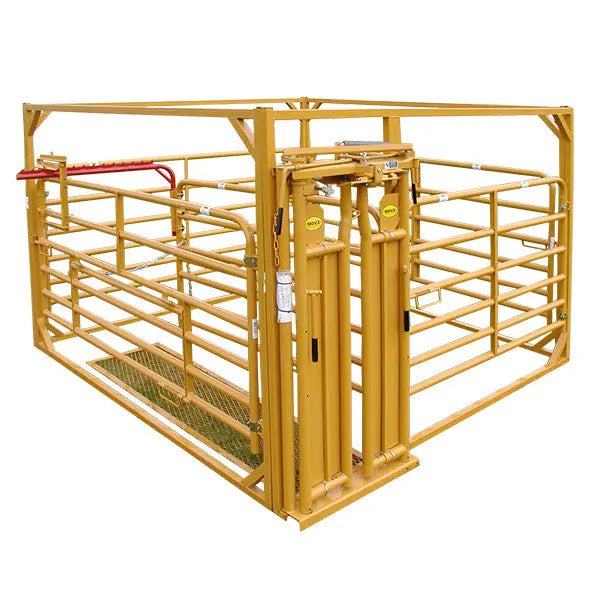

Easy to Assemble Calving Pen

Most user-friendly calving pen on the market! Cattlemen from all over the country say they would not be without our Sioux gold quality calving pen care center ever again.

Sioux Steel’s calving pen fits well in just about any barn setup or working facility. Save the calf on that difficult heifer this year, you will see the results! Versatile and expandable, easily add a section later if you decide to expand the herd and create your own modular facility.

All sides contain an in-and-out swing gate and latch for easy access by any direction. Easy assembly connector clips eliminates nuts and bolts.

System Includes:

• (1) 10’ head gate panel – part# S189756
• (1) Auto head gate – part# S198400
• (1) Anchor mat – part# S168700
• (2) 10’ standard panels – part# S15506
• (1) Squeeze gate ratchet latch – part# S198805
• (1) Ratchet latch mount – part# S158965
• (1) 7’ squeeze gate – part# S173979
• (1) 10’ nursing panel – part# S15505
• (8) Connector clips – part# S183488

Our highly-engineered heavy-duty framework consisting of 360° miter cut reinforcing corner members and 4×4 weld architecture make this the most popular pen on the market today. Gates/panels are made of 50,000 psi, 16 gauge, high-tensile steel tubing.

Anchor Mat:
Heavy 2’ wide by 9’ long, 9 gauge expandable steel mat with perimeter reinforcements. While animals stand with their feet on the mat, the mat does not allow the head gate or the pen to be pushed out of position.

Outside Flip-Up Nursing Panel:
1/4 of the gate flips up and locks tight to provide open area on the outside of the pen for nursing, birthing, or veterinarian tasks.

Squeeze Gate:
Tightens against outside panel to hold the animal secure and swings completely out of the way. Squeeze Gate converts to a 10’x10’ pen for treating and holding sick or injured animals.

Ratchet Latch:
Easy to handle and assures solid control of the animal. Tightens squeeze gate in increments. When locked, stays locked. Overhead rope gives quick, safe release.

Video

Specs

Product#	Weight
S15503HD	1094 lbs.

Parts

Order Parts Online:

• Connector Clips (S183488PG)
• Ratchet Latch (S198805)
• Ratchet Latch Mount (S158965)
• Squeeze Lock Frame (S15513)
