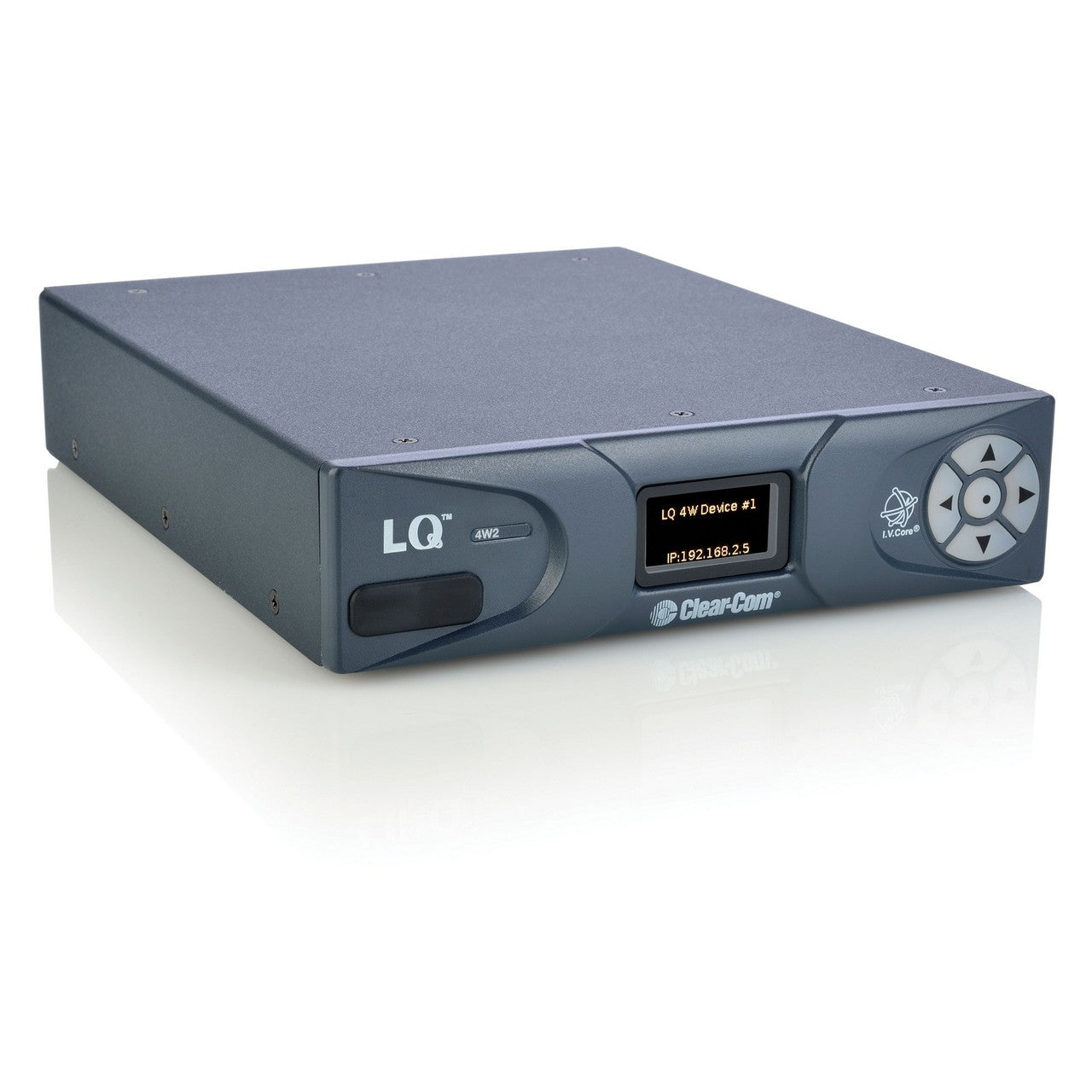

Clear-Com LQ-4W2 2 Channel 4 Wire IP Interface

The LQ-4W2 is a compact box that enable connection of 4-wire audio devices over LAN, WAN or Internet IP infrastructures. LQ Series devices can also connect to Eclipse HX frames via the IVC-32-HX interface card, adds Agent-IC mobile clients to Encore and HelixNet partyline systems, or SIP client connections over wireless networks. The LQ-4W2 can interconnect with devices, such as analog ports of any matrix intercom systems, analog telephone circuits, two-way radio gateways and audio consoles.

Key Features

• Eclipse HX connection via IVC-32-HX card over LAN, WAN or Internet
• Can remotely connect up to 8 IVC-32-HX ports per LQ device
• Supports up to 8 SIP client connections per LQ device (license required)
• Supports up to 8 Agent-IC clients per LQ device (license required)
• Connects to HelixNet via HLI-ET2 over LAN or WAN
• Connect up to 6 LQ devices together over LAN, WAN or Internet
• 4-wire ports support data and audio for Clear-Com Eclipse and Drake 4000 panels
• Adjustable bandwidth on a per port basis
• Uses low-latency OPUS codec
• Browser-based CCM configuration software (PC, MAC, Tablet)
• DC power supply or PoE

Technical Specifications

Audio
Resolution: 12 bit
Sample Rate: 24KHz
Frequency Response: 100 – 12KHz
CODEC: OPUS
Input Gain: -12dB to +12dB
Output Gain: -12dB to +12dB
Network Setting
Bit Rates: 32, 48, 64, 128Kbps
Packet Size: 5, 10, 20, 40, 60ms
Jitter Buffers: 0 – 1000ms
Connectors
2 x EtherCON (female): 2 x Network
2 x EtherCON (female): 2 x Audio I/O
Partyline Output Current
Type: Clear-Com & RTS
Local DC Powered: 150mA
POE Powered: 70mA
Power Supply
Plug-in adapter with sleeve locking connector
(US, UK , Europe, AUS & China sockets included)
Input: 100-240V, 47-63Hz, 0.58A MAX
Output: DC 12V, 2A, 24W MAX
Environmental
Operating Temperature: +32 deg F – +104 deg F (0 deg C – +40 deg C)
Storage Temperature: -67 deg F – +158 deg F (-55 deg C – +70 deg C)
Humidity: 90%, non-condensing
Dimensions
6.8in W x 1.79in H x 8.45in D
(173mm x 46mm x 215mm)
Weight
1.83lbs (.83kg)
