Eartec EVADE EVX12D-CM Full Duplex Dual Channel Wireless Intercom System with 12 Dual Speaker Headsets

The EVADE Double is the ultimate full duplex wireless headset in comfort and performance. Totally self-contained they feature Light Industrial design that provides a simultaneous talk, open line of team communication for up to 32 crew. EVADE Double are a dream to wear covering both ears with extra wide deluxe padding and do not require a cable, belt pack transceiver or even a base station. This smart engineering makes the EVADE series easy to operate, reliable, and affordable

Operation of the EVADE Double is controlled by a digital operating system known as Frequency Hopping. From the instant they are powered up the compact full duplex radio installed in the earcups continuously monitors the environment and automatically switches to channels that are clear to avoid interference. Frequency Hopping is digital wireless technology that provides crystal clear communication by circumventing or “evading” other wireless systems

The Conference Module (included) provides a staff conference with a single touch of a button

The Conference Module is a compact wireless repeater that expands the capacity of any EVADE system from 9 to 16 users. This lightweight digital transceiver can either belt worn or placed centrally on location and features dual channels allowing two separate crews to talk privately. Pressing the conference button on the Module face connects the entire team, and tapping the button again re-separates the groups. Two Conference Modules can also be interlinked doubling system capacity to 32 users all connected in full duplex mode

Field programmable, smaller set-ups can and be easily expanded to meet your changing needs without factory programming or re-tuning.

Key Features

• Excellent performance – Range up to 1/2 mile
• Radio installed inside earcup, no wires or beltpacks
• Li-Poly Batteries – Provide continuous 8 hr operation and are field replaceable
• Auto Mute Boom – Mute when in UP position
• Volume Control – Simple up / down push button adjustment
• Sealed for use outdoors in inclement conditions
• Light Industrial Design – Wear comfortably for an 8 hour work shift
• Field Programmable – Start small and add to your system as needed

Technical Specifications

Frequency Range
2407MHz-2475MHz
Data Rate
1MBPS
Bandwidth
150KHz
Channel Spacing
1MHz
Modulation Type
GFSK
Gain of Antenna
0db
Duplexing
Time Division Duplex (TDD)
Speech Encoding
ADPCM/16kbit/s
RF Accessing
Time Division Multiple Access (TDMA)
Power Supply
Rechargeable Li-polymer Battery @ 3.7v/1000mAH
RF Output Power
80mw
Operating Temperature
0 – +50º C
Operating Relative Humidity Range
30% – 90%
Operation Current
110mA
Operation Time
8h
Range
1/2 mile (open field)

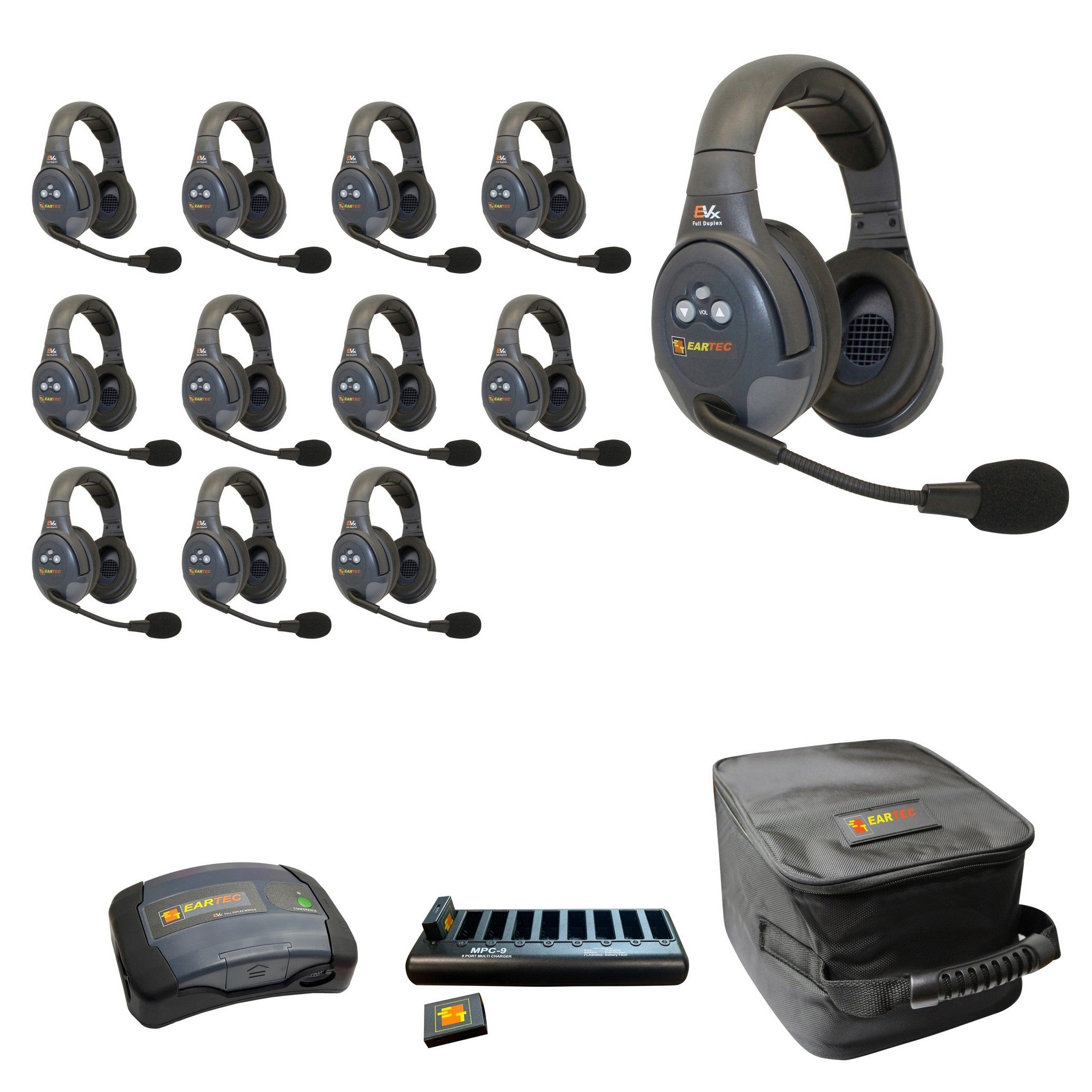

Item Includes
1- EVADE C-MOD 2- EVADE Double-Ear Main Headset 10- EVADE Double-Ear Remote Headset 2- 9-Port Charger w/ Adapter 2- Extra large Soft Padded Case 12 X Lithium-Polymer Batteries
