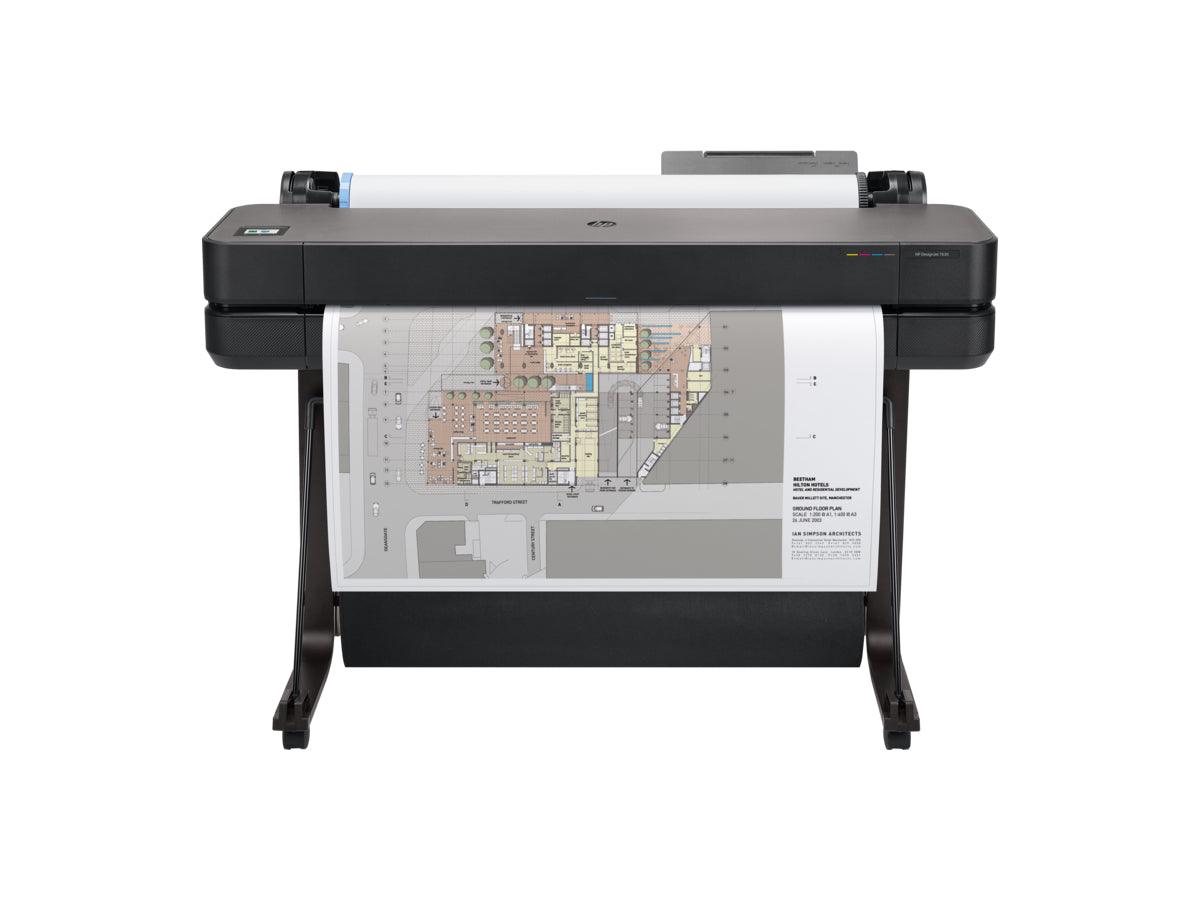

Name: HP DesignJet T630 36-in Printer (5HB11A) 2025 New
SKU: 3u4mq35
Availability: InStock

The world’s smallest wide-format printer with a built-in stand, is designed to fit your office, budget, and the way you work. Print multi-size projects with ease. Print your A1 plot as fast as 30 seconds. 1 GB memory.
Save time with the world’s easiest job submission tool – HP Click. Print multiple files in as little as one click. Manage your large-format printing virtually anywhere and anytime with the HP Smart app. 1 GB memory. Includes printer stand.
Save space with the world’s smallest plotters. A more sustainable design reduces CO2e up to 7.3 tons/year by units sold by using up to 30% recycled plastic. Use up to 95% less ink for routine maintenance to get extra A1 pages/month.
Avoid waiting with high-speed printing as fast as 30 sec per A1 plot. Save time from job prep to final print. Print, and manage your plotter, from virtually anywhere, anytime with the HP Smart app. Get quality results with HP Bright Office Inks.

Technical Specification:

Function: Print
Print speed: 30 sec/page on A1, 76 A1 prints per hour
Ink Drop: 5.5 pl (C, M, Y); 12 pl (K)
Print head nozzles: 1376
Print cartridge volume delivered: 80 ml (K); 38 ml (K); 29 ml (C, M, Y)
Ink types: Dye-based (C, M, Y); pigment-based (K)
Number of print cartridges: 4 (C, M, Y, K)
Print heads: 1 (cyan, magenta, yellow, black)
High capacity of page yield (colour): 20 ml of ink yields 101 A1 pages, taking into account maintenance routines
Color(s) of printing supplies: Cyan, magenta, yellow, black
Print quality color (best): Up to 2400 x 1200 optimised dpi
Finished output handling: Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter
Media sizes standard (metric rolls): 279 to 914 mm
Roll external diameter: 100 mm
Roll maximum input: 1
Roll maximum weight: 6.2kg
Recommended media: Q1396A HP Universal Bond Paper (FSC® certified) (recyclable) 610 mm x 45.7 m;C6019B HP Coated Paper (FSC® certified) (recyclable) 610 mm x 45.7 m;C6029C HP Heavyweight Coated Paper (FSC® certified) (recyclable) 610 mm x 30.5 m
Media thickness (metric): Up to 0.3 mm
Supported Primary Applications: Line drawings; Presentations; Renderings
Non-printable area (cut-sheet): 5 x 5 x 5 x 17 mm (manual feed); 5 x 5 x 5 x 5 mm (input tray)
Non-printable area (roll media): 5 x 5 x 5 x 5 mm
Media sizes, custom: Auto sheet feeder: 210 x 279 to 330 x 482 mm; manual feed: 210 x 279 to 914 x 1897 mm
Media sizes supported: Auto sheet feeder: A4, A3; manual feed: A4, A3, A2, A1, A0
Media types: Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)
Media weight, recommended: 60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (auto sheet feeder)
Internal Storage: None
Line accuracy: ±0.1%
Printer drivers included: Raster driver for Windows and macOS
Print languages: HP-GL/2, HP-RTL, CALS G4, JPEG, URF
Print technology: HP Thermal Inkjet
Theoretical minimum line width: 0.02 mm
Printing path: Print Anywhere with HP Smart app, HP Click, HP driver for macOS, HP driver for Windows, printing support for Chrome OS, email printing, HP Print Service Plugin for Android, Apple AirPrint
Connectivity, standard: Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct
Remote print enabled: Yes
Print multi-size files in one click: Yes
Minimum dimensions (W x D x H): 1317 x 605 x 932 mm
Package dimensions (W x D x H): 1470 x 575 x 590 mm
Weight: 34.7 kg
Package weight: 55.3 kg
Memory: 1 GB
Energy star certified: Yes
One year warranty

HP DesignJet T630 36-in Printer (5HB11A) 2025 New
