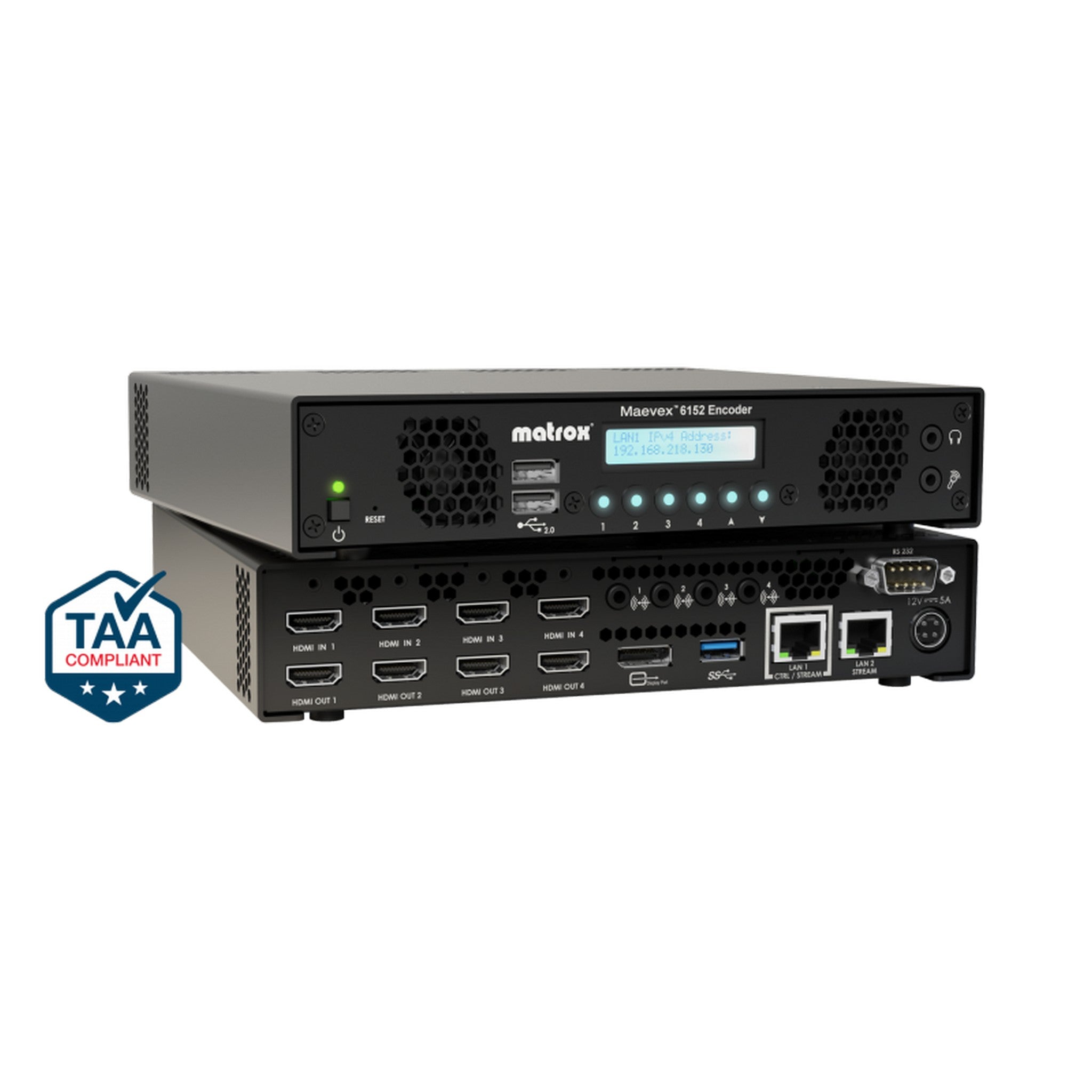

Matrox MVX-E6152-4 Maevex 6152 Quad 4K Encoder

Matrox Maevex 6152 is a quad HDMI video encoder that delivers 4K60 input capture and encode, and supports at least four 4K streams and recordings-simultaneously. The encoder features six streaming protocols, multiple chroma sub-sampling, adjustable encoding parameters, zero-latency pass-through, and compositing, all in a convenient, quiet, low power, rack-ready appliance that fits almost any encoding application. The complimentary Maevex SDK enables you to build new applications or integrate the functionalities of PowerStream Plus into existing applications. TAA compliant SKU available.

Low latency streaming. High quality experience.
Achieve zero-latency pass-through for real-time output of audio/video content on up to four 4K displays. This H.264 encoder integrates seamlessly into existing infrastructures and interoperates with virtually any network device, ensuring high-density content distribution and system scalability-all without sacrificing quality. Maevex also uses existing 1 Gigabit Ethernet infrastructure to allow many streams of any quality to be transmitted on a single cable, eliminating the need for a dedicated distribution network. The Maevex 6152 encoder can have latency as low as 16 ms.

Flexible protocols. Secure streaming.
Enjoy a variety of streaming protocols-HLS, MPEG2-TS, RTP, RTMP, RTSP, and SRT-for trouble-free streaming. Support for the Secure Reliable Transport (SRT) video transport protocol means that secure, low-latency, and high-performance streaming is also realized on noisy or unpredictable networks such as the public Internet. Whether you’re dealing with a stable LAN connection, a limited WAN pipeline, or an unpredictable Internet transport, Maevex has the right streaming protocol for the job.

Flawless image quality
Benefit from up to 4K/UHD 4:4:4 sub-sampling support and H.264 compression for best-in-breed encoding. The multi-chroma sub-sampling feature delivers 4:4:4, 4:2:2, 4:2:0, and 4:0:0 options, to best balance bitrate and compression demands of different encoding content, environments, and markets. User-definable bitrates and quantization parameters, as well as various encoding modes to optimize for desktop, low-latency, or image quality.

Quad stream and record. Anywhere, at the same time.
Maevex 6152 delivers content to on-premises end points, over the LAN, WAN, and internet, feeds cloud-based servers, and records to local or network storage for later editing and viewing. The Maevex 6152 encoder can also transmit live and/or recorded content for multiple video-on-demand platforms-such as Facebook Live, YouTube, Twitch, Wowza, Vimeo, IBM Video Streaming, and Restream, to name a few.

Rack mountable. Ultra-quiet operation.
Support up to eight 4K streams and recordings from a single U of rack space. The Maevex 6152 encoder is stand-alone appliance housed in a 1U ½ rack width. Place the appliance on the desktop, workstation, or rack, and it’s ready to use.

And its whisper-quiet operation means that Maevex is made for control rooms, operation centers, and other critical environments that require a noise level of 25 dB and less.

Control is just a touch away
An on-device LCD display shows device IP and stream addresses, system information, and other urgent content for easy installation and troubleshooting directly on the device. Six on-appliance buttons-to read and/or control the LCD display and start/stop streaming and recording-provide all the control you need with a simple press of a button.

Key Features

• Quad 4K input with zero latency pass-through
• Low latency
• Streaming flexibility
• HDCP 1.4 and 2.2 compliant
• H.264 advanced video coding
• 4:4:4 8-bit support
• Rack-mountable
• Centralized management via PowerStream Plus or APIs

Technical Specifications

Part Number
MVX-E6152-42
Form Factor
Standalone appliance
Rack-mountable: 1U, 1/2 rack (horizontal)
Connectivity
Video Input
Number of channels
4
Formats
HDMI (Type A) with audio support
Video Output
Number of channels
4
Formats
HDMI (Type A) zero latency pass-through
Audio Input
4x HDMI digital LPCM two-channel stereo audio
4x 3.5 mm analog stereo audio
1 Vrms (0 dBV)
14.3 kΩ (gain = 0 dB)
-60 dB to +6 dB (default is 0 dB)
1x 3.5 mm stereo mic in
2.5 V
1 Vrms (0 dBV)
15 kΩ (gain = 0 dB), 5 kΩ (gain≥ 10 dB)
-74 dB to +41 dB (default is 0 dB)
Audio Output
4x HDMI digital LPCM two-channel stereo audio
1x 3.5 mm headphones out
1.2 Vrms (1.6 dBV)
32 mW into 32Ω
-74 dB to 0 dB (default is 0 dB)
Network Connector
2x RJ45 with status LED indicators
(1x control and stream/record, and 1x stream/record only)
USB Ports
2x USB 2.0 (front)
1x USB 3.0 (back)
RS-232
1x for IP to RS-232 control
Confidence Preview
1x DisplayPort 1.1
Maximum resolution: 1920×1080
Multi-Unit Support
Yes
Performance
Color Space and Chroma Sub-Sampling
RGB and YUV 8- and 10-bit support
Color space conversion support
4:0:0 (8-bit and 10-bit*)
4:2:0 (8-bit and 10-bit*)
4:2:2 (8-bit)
4:4:4 (8-bit)
*1080p60 max
Video Input Resolutions
4x 3840×2160 @60Hz or 4x 4096×2160 @60Hz
Video and Audio Processing
Video Scaling
Yes
Video Compositing
Yes, fixed formats including Picture-in-Picture (PiP), Picture-by-Picture (PbP), quadrant
HDCP Support
Only available between Maevex 61X2 Encoders and Maevex 6152 Decoder
Audio Encoding Format
MPEG-4 AAC-LC/HEv1/HEv2
Audio Sampling Frequency
32 kHz
44.1 kHz
48 kHz
Audio Bitrates
Up to 144 Kbps (AAC-HEv2)
Up to 288 Kbps (AAC-HEv1)
Up to 576 Kbps (AAC-LC)
Codec
Video Encoding Formats
H.264/MPEG-4 Part 10 (AVC)
Encoding Profiles
Baseline (BP)
Main (MP)
High (HiP)
High 10 (Hi10P)
High 4:2:2 (Hi422P)
CAVLC 4:4:4 intra (44)
High 4:4:4 predictive profile separate plane (Hi444PP)
Encoder Bitrates Range
15 Mbps (default)
50 Kbps to 120 Mbps (Maximum operational bitrate per stream is dependent on number of streams and features enabled.)
Encoding Rate Control
Adjustable GOP size
Constant Bitrate (CBR)
Favor quality and optimize for desktop or latency
Variable Bitrate (VBR)
Encoding Level
Up to 5.2
Encoding
Encoding Capability
4:2:0*
4x 3840×2160 @30Hz
3x 4096×2160 @30Hz
2x 3840×2160 @60Hz
1x 4096×2160 @60Hz
4x 2560×1600 @60Hz
8x 1920×1080 @60Hz
16x 1920×1080 @30Hz
4:4:4*
1x 2560×1600 @60Hz
1x 3840×2160 @30Hz
1x 4096×2160 @30Hz
3x 1920×1080 @60Hz
6x 1920×1080 @30Hz
*Each encoding capability is independent of the others listed, and excludes any additional processing such as compositing, scaling, etc. Content can affect results. For more details and encoding capability support, contact Matrox.
Network
Network Standard
100/1,000 base-T Ethernet
Auto speed
Half/full duplex
IGMP Version 2 and 3
Routing Scheme
Unicast
Multicast
Multi-unicast
IP Addressing
IPv4
IPv6
DHCP (default) and static IP
Streaming Protocols
HLS
MPEG2.TS over UDP
RTMP
RTP/RTCP (both required) over UDP
RTSP (TCP), RTCP & RTP (UDP) – all required
RTSP over TCP (interleaved)
SRT
Command and Control
HTTPS over TCP
UPnP (discovery)
Security
802.1x (EAP-TLS) support
Recording
File Format
MP4
MOV
fMP4
Filename
Customizable prefix (optional)
Timestamp
Automatic in filename
Programmability
Duration
File frequency
Maximum file length
Start date and time
Recording Locations
Local USB ports for USB flash drive and external hard drive
2x USB 2.0 (front) and 1x USB 3.0 (back)
Shared network drive or NAS
Physical
Product Dimensions
8.53 (L) x 7.52 (W) x 1.68 (H) inches
21.7 (L) x 19.1 (W) x 4.3 (H) cm
Unit Weight
Device only ~ 1.5 kg.
With accessories and packaging ~ 3 kg.”
Noise Emission
~25 dB at full stream/record capacity
Hardware & Software
Hardware Included
Maevex 6152 Quad 4K Encoder Appliance
Power Supply
100-240 VAC in, 12 VDC out, 60W
DIN4 locking power connector
Power Cords Included (US, EU, UK, Aus/NZ)
Accessories (sold separately)
Rack Mount Kit (part number: RMK-19TR-A)
Rack mounting shelf (19 in / 48.26 cm)
Pan head Phillips screws (4x 10-32 x 3/4 in)
Pan head Phillips screws (4x 12-24 x 3/4 in)
Flat head Phillips screws (6x M3 x 6 mm)
NRG Redundant Power Supply Unit
Rack tray with one NRG RPSU pre-installed (part number: NRG-5-1DB)
Rack tray with two NRG RPSU pre-installed (part number: NRG-5-2DB)
Secure cable solution for HDMI (part number: SK-SLND-4)
Software
PowerStream Plus (free download) *
Compatible with Maevex 5100 Series and Maevex 6100 Series
Network discovery
Multi-encoding and recording management
Multi-protocol management
Frame rate management
Resolution control
Administrator and user credential management
Scaling management
SNMP support
Maevex 6100 Series RS-232 API (free download) *
Control Maevex 6100 appliances via Crestron, Kramer, Extron, or other tabletop touch-screen controllers.
Access basic commands including list, start/stop streaming and recording, and device reboot.
Maevex SDK for Windows and Linux*
Full-access to entire feature set via SDK
.NET 4.5.1 or higher, standalone library and Mono 5.2 or higher for Linux
Maevex REST API*
Maevex 6100 Series REST API
Available for lower-level development
*Contact Matrox for more details.
Environmental
Operating Conditions
Temperature
0 to 45 degrees Celsius
Altitude
650 hPa (3,580 m) to 1,013 hPa (0 m)
Humidity
20% to 80% non-condensing
Storage Conditions
Temperature: -40 to 70 degrees Celsius
Altitude: 192 hPa (12,000 m) to 1,020 hPa (-50 m)
Humidity: 10% to 90% non-condensing
Power Consumption
45W
General
Supported Operating Systems (software)
Windows Server 2022
Windows Server 2019
Windows 11 and Windows 10
EMC/EMI Device Class
Class A
EMC/EMI Compliance
CE (EU)
FCC (US)
ICES-3 (Canada)
KC (Korea)
RCM (Aus/NZ)
Environmental Compliance
China RoHS
EU RoHS
REACH
WEEE
Warranty
Two-year limited warranty with free online or telephone support
