Scanna ScanSilc 3643

Scansilc 3643 EOD is a new large area, flat panel x-ray imaging system with a 14 x 17” imaging area which has been specially ruggedized for use in security and EOD. The x-ray detector panel operates via integrated Wi-Fi and/or cable connection, without any bulky interface box to offer high definition image quality.

The new Scansilc imagers have virtually no dead area, are high shock tolerant and suitable for a wide range of defense and security field applications including EOD, C-IED unattended baggage checks, vehicle inspection, cell searches and for detecting weapons and contraband material. Scansilc Thin Panel X-ray systems also have applications within the fields of forensics and counter surveillance
(TSCM).



Key features

• Wired or Wireless X-ray Control and Fire via the companion laptop or tablet
  for fast ‘Place and Fire’ Deployment – no need to return to target to adjust
  pulses
• Wired or Wireless X-ray Image Data Transmission back to laptop/tablet
• Unlike many other flat panel x-ray systems no bulky interface box is
  required
• Lightweight panel with high shock tolerance – Ideal for field use
• Negligible dead area to capture more of what you need to see
• Water resistant to IP65 – Suitable for most security environments
• Fast Image Acquisition for rapid deployment operations
• Optional ScanDEM snap on Dual Energy Module for color separation of
  organic and inorganic material such as weapons/explosives/narcotics
• Specially ruggediZed for EOD, Security and Defense applications

TECHNICAL FEATURES

• 3.5 lp/mm , 140 micron resolution. Csl or GoS scintillator
• Image area 14” x 17” (3,072 x 2,560 pixel resolution)
• 6 hours standby operation producing 700 images per battery charge
• Panel Dimensions: 18” (w) x 16” (h) x 0.86” (d)

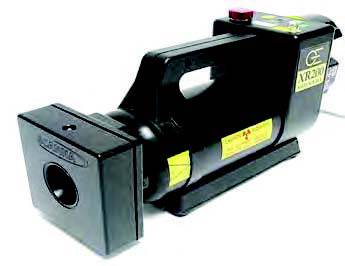

• Panel Weight 9.9 lbs.* Golden X-ray Generators 5-12 lbs

IMAGE PROCESSING FEATURES
ScanView software gives you a range of image manipulation options to get all the detail you want out of your x-ray image.

• Black and white image
• Inverse / negative image
• Pseudo color density filters
• Brightness Contrast Adjustment
• Gamma Adjustment
• Histogram Equalization
• Select Region of Interest
• Multiple zoom 800 x
• Zoom to region of interest
• Pseudo 3D
• Find Edges
• Sharpen/ Clean/Soften Image
• Image Rotation/Flip/Mirror
• Image Stitching
• Optional organic/Inorganic
material separation filter
(explosives/narcotics).



DATABASE FEATURES

• Database software allows you create incidents and store and manage over 32,000
images using searchable fields.
• Store and Retrieve database images
• Auto save images for evidential purposes
• Export and Import Images – Supported image
• export formats: .sca, .jpg. .tiff (16 bit), .bmp
• Compact and export Database
• Database Protection
