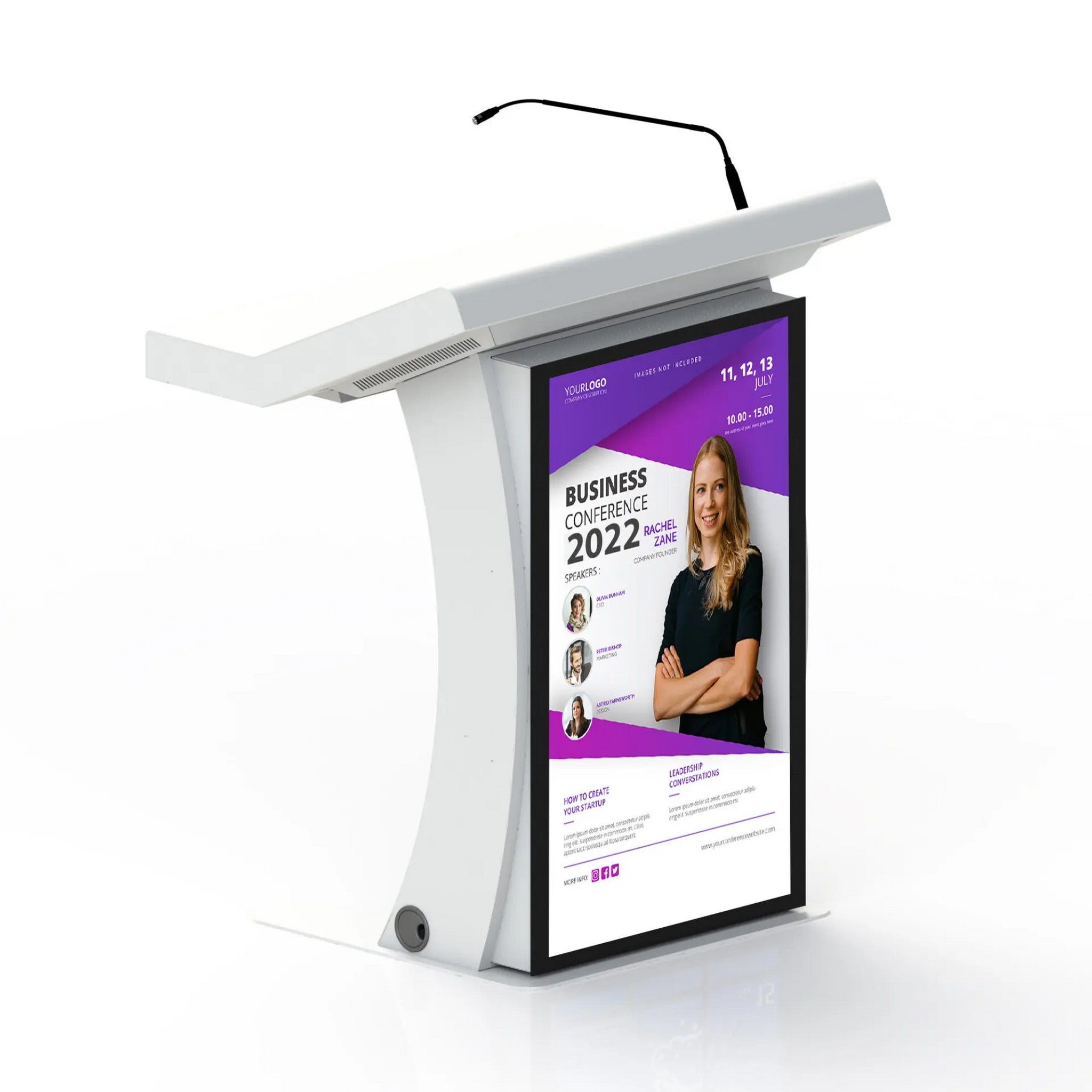

TEMAS DL24B 22″ Speaker Screen & 43″ Front Screen Digital Podium

Elevate your presentation experience with the TEMAS DL24B Digital Podium, designed for professionals who demand functionality and style. This podium is equipped with a 43″ front screen that ensures your audience can easily see your presentation from any angle, making it an ideal choice for conferences, classrooms, and corporate meetings. The integrated 22″ speaker screen adds a layer of interactivity, allowing presenters to engage more effectively with their audience, ensuring that every word is heard and every visual is seen.

The TEMAS DL24B Digital Podium is not just a presentation tool; it’s a complete multimedia solution. Its sleek and modern design seamlessly fits into any environment while providing all the technical features necessary for a successful presentation. The podium is built with user-friendly controls, allowing presenters to focus on delivering their message rather than fiddling with equipment. This podium is a perfect blend of aesthetics and functionality, making it a must-have for anyone serious about their presentations.

With its durable construction, the TEMAS DL24B is engineered for long-term use, making it a reliable companion for frequent speakers. The podium is easy to set up and features multiple connectivity options to accommodate various devices. Whether you’re using a laptop, tablet, or smartphone, the DL24B provides flexibility to ensure that your presentations run smoothly. Choose the TEMAS DL24B Digital Podium and experience a new standard in presentation technology.

Key Features

• 43″ front screen for maximum visibility
• 22″ speaker screen for enhanced audience engagement
• User-friendly interface for easy operation
• Multiple connectivity options for versatile device compatibility
• Sleek design that fits any professional setting
• Integrated audio system with high-quality output
• Remote control for convenient operation
• Built-in LED lighting for enhanced visibility

Technical Specifications

Speaker Screen Specifications

Diagonal: 21.5″; 55cm

Aspect Ratio: 16:09

Panel Amva: LED

Native Resolution: Full HD 1080p, 1920 x 1080 (2.1 megapixel)

Brightness: 250 cd/m² typical

Brightness: 215 cd/m² with touch panel

Advanced Contrast: 12,000,000:1 ACR

Static Contrast: 3,000:1 with touch panel

Response Time: 8 ms

Viewing Zone: horizontal/vertical: 178°/178°; right/left: 89°/89°; up/down: 89°/89°

Display Colour: 16.7 million

Blue Light Reducer: yes

Touch Technology: projective capacitive

Touch Points: 10

Glass Hardness: 7H minimum

Light Transmittance: 85%

Display Area: H X W 268.1 x 476.6 mm; 10.6″ x 18.8 “

Pixel Pitch: H X V 0.248 x 0.248 mm

Horizontal Sync: 30 – 80 KHz

Vertical Sync: 56 – 75 Hz

Synchronization: Separate Sync

INTERFACES / CONNECTORS / CONTROLLERS

Analog Input Connector: VGA

Digital Input Connector: DVI, HDMI

USB HUB: UP 1 x USB 3.0 / DOWN 4 x USB 3.0

Controls: USB (touch), USB 3.0

Front Screen

Diagonal Size: 43”

Type: Edge LED BLU

Resolution: UHD (3840 x 2160)

Pixel Pitch(mm): 0.2451 x 0.2451

Active Display Area(mm): 941.184 (H) x 529.416 (V)

Brightness(Typ.): 500

Contrast Ratio: 4000:01:00

Viewing Angle(H/V): 178/178

Response Time(G-to-G): 8ms(Typ.)

Display Colors: 16.7M

Color Gamut: 72%

Operation Hour: 24/7

Internal Player (Embedded H/W)

Processor: Coretex A72 1.7GHz Quad-Core CPU

On-Chip Cache Memory: L1 Instruction Cache: 48KB, L1 Data Cache: 32KB, L2 Cache: 2MB

Clock Speed: 1.7GHz

Main Memory Interface: 2.5GB LPDDR4 1.5GHz 64bit

Graphics: Graphic resolution: 1920×1080, Output resolution: 3840×2160 (Scale up from graphic processing result.)

Storage (FDM): 8GB (3.88GB Occupied by O/S, 4.12GB Available)

Multimedia: MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 AC3 (DD), MPEG

IO Ports: USB 2.0

Operating System: Tizen 4.0 (VDLinux)

PC

Operating System: Windows 10 Pro

CPU: Intel® Pentium® Gold G6405 Processor 4.1GHz (4M Cache)

Chipset: Intel B560

Graphics: Integrated – Intel HD Graphics

Memory: DRAM MODULE(DDR4)/3200/4G

Storage: 128GB M.2 NVMe™ PCIe® 3.0 SSD

Wireless Data Network: Wi-Fi 6, Bluetooth 5.0, 2*2

LAN: 10/100/1000 Mbps, Intel LAN

Side(Front) I/O Ports: 4 x USB 3.2 Gen2 Type-A (1 w/QC), 1 x USB 3.2 Gen1 Type-C, 2 x Audio Jacks(optional)

Back I/O Ports: 1x USB3.2 Gen1 Type-A, 2x USB2.0, 1x RJ45 LAN, 2x Display Port 1.2, 1x configurable ports (HDMI 2.0/VGA/COM/DP/LAN), 1x Kensington lock, 1x DC-in

Power Supply: 150W – 19Vdc, 4.74A, 90W Power Adapter

Dimensions (W x D x H): 175 x 175 x 44.2 mm

Weight: 1.3KG (HDD included)

Color: Black

Accessories: USB Keyboard & Mouse

Certificates: BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI

Microphone

Shure 18 CVG18S-B Microphone: Cardioid Polar Pattern, Dual-section Gooseneck

Cartridge Type: Electret Condenser

Frequency Response: 70–16000 Hz

Polar Pattern: Cardioid

Output Impedance: 180 Ω

Sensitivity (at 1 kHz, open circuit voltage): –33 dBV/Pa (22 mV)

Maximum SPL (1 kHz at 1% THD): 120 dB SPL

Signal to Noise Ratio (referenced at 94 dB SPL): 67 dB

Dynamic Range: 93 dB

Self Noise (equivalent SPL, A-weighted, typical): 27 dB SPL

Common Mode Rejection (10 Hz to 100 kHz): 45 dB

Preamplifier Output Clipping Level (1% THD): −7 dBV

Polarity: 3

Power Requirements: 11–52 V DC, 2.0 mA

Shure A400SMXLR Shock Mount
Decouples a microphone from the mounting surface and reduces transmission of impact or surface.

Front Panel

43″ Resolution: 1920×1080 FHD

Brightness: 350 cd/m2

Aspect Ratio: 16:09

Panel Type: IPS

Front Panel Player: Digital Signage Media Player

Lecturer Panel

Screen Resolution: 1920×1080

Brightness: 250 cd/m2

Aspect Ratio: 16:09

Number of Touch Points: 10 Points Capacitive

Lecturer Panel PC: CPU: Intel 4.1 GHz; RAM: 4 GB; HDD: 120 GB SSD; Operating System: Windows 10 Pro

Microphone

Length: 18”

Number of Microphones: 1 pcs

Output Connector: 3-way XLR (Male)

Microphone Type: Cardioid

Frequency Response: 50 – 18 kHz

Power ON Indicator: LED

Power Requirement: Phantom Power (48V)

Outputs (Bottom of Podium)

HDMI: Available (Projector Out)

Ethernet: Network Connection

XLR for Microphone: 3-way XLR (Male)

USB: USB 2.0 (for internal PC)

Timer

Screen Size: 5”

Timer Features: Clock, Timer, Stopwatch, Touch PCAP

Mechanical Specs

Outline Dimensions (mm) Set: 684 x 850 x 1163

Outline Dimensions (mm) Package: 810 x 990 x 1390

Weight (kg): Set: 74 kg; Package: 125 kg
