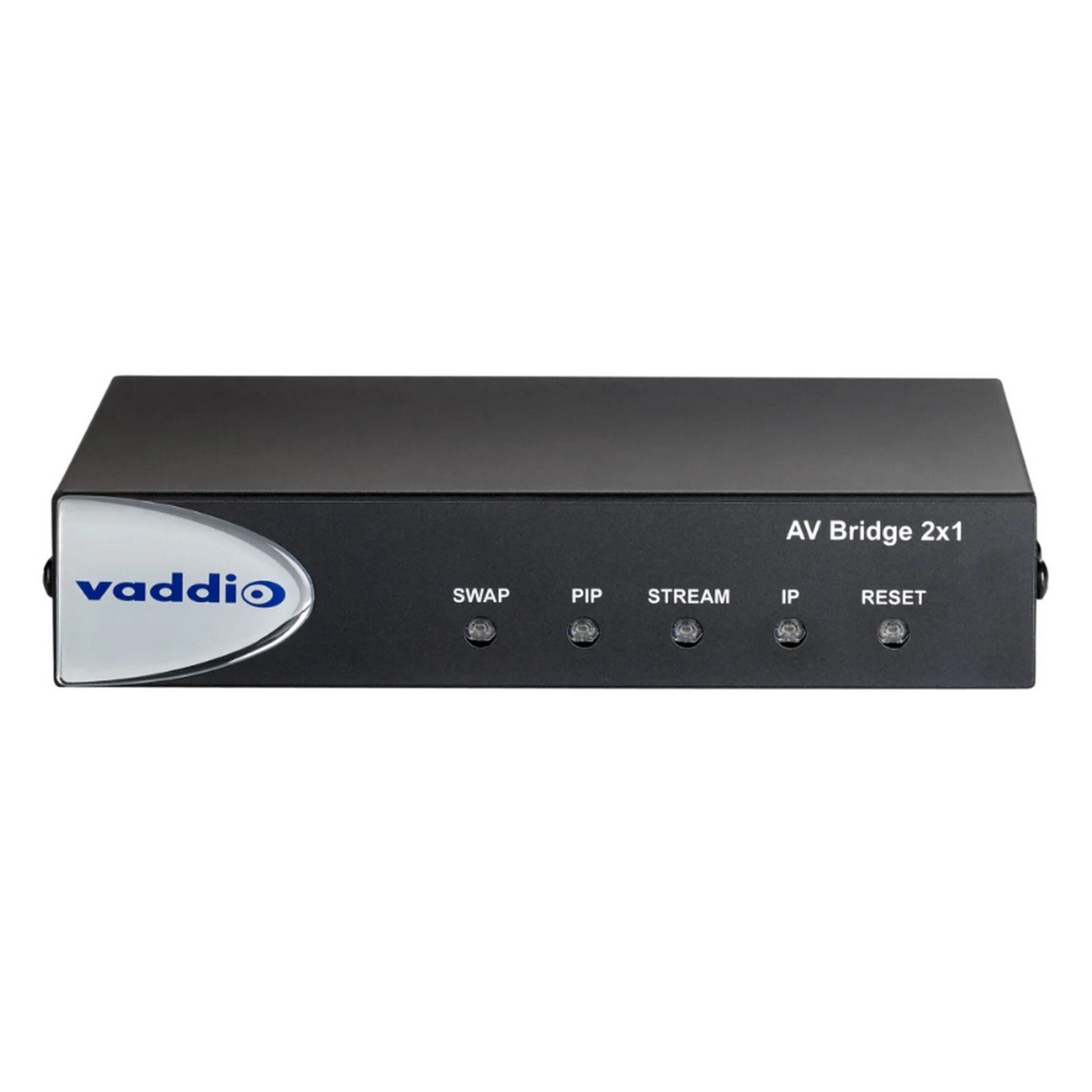

Vaddio AV Bridge 2×1 Presentation Switch (999-8250-000)

Vaddio’s simplest lecture capture device yet! We call our AV Bridge 2×1 the classroom-in-a-box solution because it enables simple distribution, production, and capture of high-quality networked Dante audio, analog audio, and two HD video sources.

Two HDMI inputs allow you to connect either two cameras or a camera and PC display on a platform that easily switches between sources and delivers useful picture-in-picture (PIP) video streams. Concurrent 1080p USB 3.0, HDMI, and IP streaming allow for flexible video distribution. Use the AV Bridge 2×1 to simultaneously record to a local PC, magnify the speaker video through a room projector, and stream the lecture to popular online platforms – without the need for special drivers or additional applications.

The AV Bridge 2×1 has robust audio mixing capabilities as well. A 4×4 Dante I/O allows for scalable networked audio to meet the needs of any application. Install the AV Bridge 2×1 in your existing classroom designs by utilizing the 2-channel analog audio I/O and adding in new HD video sources.
Experience worry-free presentations with the automation features built into the AV Bridge 2×1. Connect Vaddio trigger devices like the StepVIEW Mat to recall a library of macros built into the web-based user interface. Control PIP settings, video sources, camera position presets and more with intuitive API integration for third party applications and control hardware. Store graphic overlays such as a company logo or speaker name to add production quality to everyday events.

The AV Bridge 2×1 is excellent for videoconferencing applications. Share more of the conference room when in video calls. Switch between a view of the boardroom table and the action at the whiteboard without missing a beat. Participate with crystal clear audio through built-in echo cancellation, ensuring both sides of the conversation are heard without annoying feedback issues common with inexpensive audio devices.

The AV Bridge 2×1 is the must-have device you need for simple, reliable multi-camera installations.

This Package Includes:
AV Bridge 2×1
Quick-Start Guide
PoE+ Midspan Power Injector with AC cord set(s)
3 ft (0.9 m) cat-5 cable, black
6 ft (1.8 m) USB 3.0 cable, type A to B
6 qty 3-position phoenix-style connectors
Half-Rack mounting kit (for mounting the AV Bridge 2x1into a full rack space)

Technical Specifications

Color
Black
Certifications
CE Approved, FCC Approved, TAA Compliant
Product Width
18.93″ (48.08 cm)
Product Height
1.72″ (4.37 cm)
Product Depth
7″ (17.78 cm)
Product Weight
3.14 lbs (1.42 kg)
Signal Type
Audio, HDMI, IP-Streaming, RS-232, USB 3.0
Power Type
PoE+
Input Ports
HDMI, Audio, Line Level Audio, Mic Level Audio, Network, RS232, USB 3.0
Output Ports
USB 3 Type B, HDMI, IP-Streaming, Network
Max Resolution
1080p/60
Browser-based User Interface for Remote Control
Built-in
Control Method
Web UI, Telnet, RS232, Trigger, USB
OneLINK Compatibility
No
Top Resolution
1080p/60
Operating Temperature
32° to 104°F (0° to 40°C)
Warranty
2 years
Power Supply
PoE+ Midspan Power Injector
Quick-Connect Compatibility
QDVI, QCCU
