Williams AV IR SY4 Medium-Area Infrared System with Stethoset Receivers

The IR T2 is a commercial-grade, medium-area infrared transmitter for accessible audio. This system features Stethoset receivers.

The IR T2’s sleek, compact footprint is ideal for assistive listening and language interpretation in commercial spaces such as conference rooms, assisted living facilities, small cinema/theaters, classrooms and courtrooms. The new IR T2 infrared transmitter offers 50 percent greater coverage than the previous IR device (WIR TX75) and new control system readiness – all at a more affordable price. With a significantly wider coverage pattern and more power, there is no need for the additional expense of secondary units.

This system has replaced the now discontinued WIR SYS 7518 PRO.

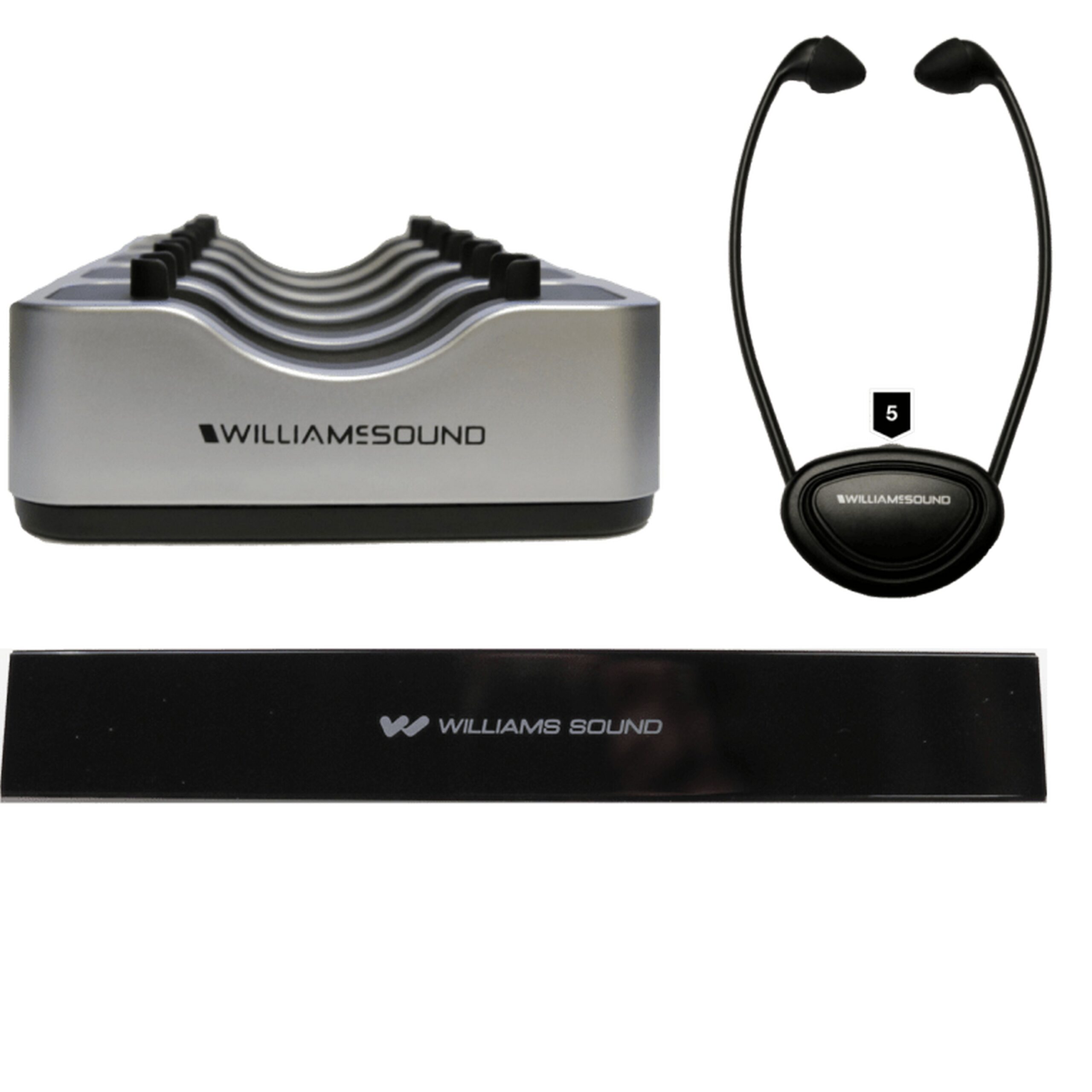

System Includes
(1) IR T2 Medium-area Infrared Transmitter
(5) IR RX20 Two-channel Stethoset Infrared Receivers
(1) CHG 520 Charger
(1) BKT 024 Wall/Ceiling Mount
(1) IDP 008 ADA Wall Plaque
(1) TFP 057 Power Supply

Technical Specifications

Dimensions
9.0” W (229 mm) x 3.8” D (97 mm) x 1.4” H (36 mm)
Weight
0.84 lb. (0.38 kg)
Color
Black
Power Supply
TFP 057 Desktop style international certified power supply with IEC line cord, 100-240 VAC input, 50-60 Hz, 18 W; 48 VDC output
DC Power Input
2.1 mm ID barrel connector, 48 VDC, 0.2A, center positive
Power Indicator
Green LED
Sleep/Power Save Mode
Shuts off carrier when no audio present for 12 minutes
Modulation
FM Wideband, +/-50 kHz deviation max, 50 uS pre-emphasis
Transmit Frequencies
2.3, 2.8, 3.3, 3.8 MHz
Coverage Area
Up to 18,000 sq. ft (1,673 sq. m) in single-channel mode with the RX22-4 receiver
Audio Inputs
Line inputs: Phoenix style connector jack for Ch A and Ch B accept line level, balanced or unbalanced audio
Audio Indicators
One yellow LED per channel. Lights up and stay on steady with minimum audio level.
Signal-to-Noise Ratio
70 dB (line input)
Frequency Response
95 Hz to 17.6 kHz, -3 dB re 1 kHz (line inputs)
125 Hz to 17.0 KHz, -3 dB re 1 kHz (microphone input)
Operating Requirements
32-122F (0-50C)
Mounting Kit
Wall or Ceiling mount: BKT 024 Omnidirectional mount
Compatible Receivers
WIR RX22-4, WIR RX18, IR R1, IR RX20
Warranty
5 years
Approvals/Regulatory Compliance
CE, FCC, Industry Canada, WEEE, RoHS, CB Scheme, RCM, PSE
