Yealink EXP50 Color-Screen Expansion Module for T5 Series Clearance Online Official Site

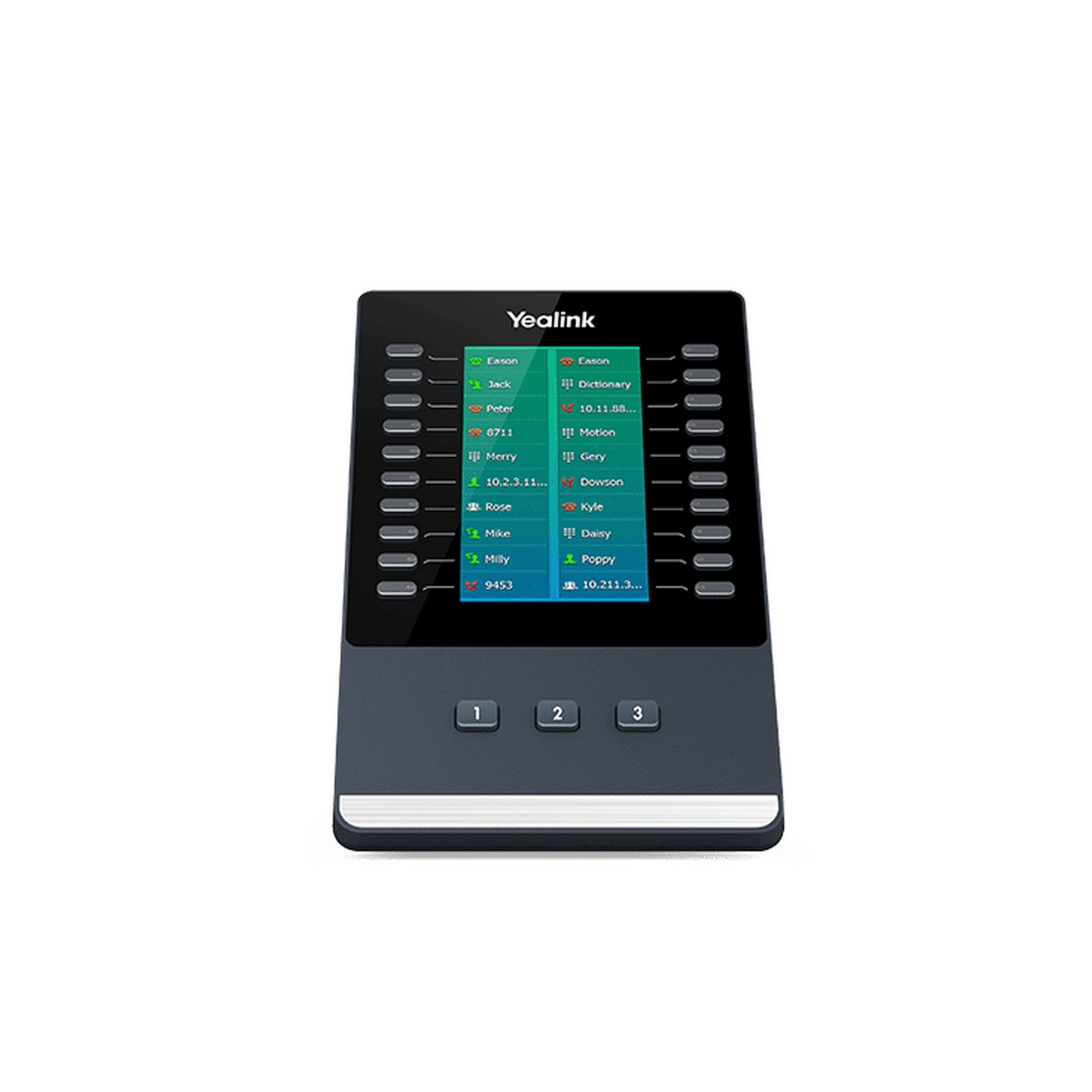

Yealink EXP50 Color-Screen Expansion Module for T5 Series

The Yealink EXP50 Color-screen Expansion Module for Yealink T5 Series IP phones, including SIP-T58V/SIP-T58A/SIP-T56A/SIPT54S/SIP-T52S, is designed to expand the functional capability of your SIP phone to a whole new level. It features a large 4.3-inch color-screen LCD, giving you a vivid visual experience. In addition, it provides you with a simple user interface and advanced call handling capabilities. For example, three pages of 20 flexible button shown on the display can be programmed up to 60 various features. The functionality of Yealink T5 Series IP phones will also be extended by the EXP50, you can set the provided multifunctional line keys as BLF, speed dial, call forward, transfer, call park, call pickup, etc. The Yealink EXP50 Color-screen Expansion Module is an ideal solution for receptionists, administrative assistants and contact center workers and give you the ability to monitor contacts and manage a large volume of calls with ease.

Key Features

• 4.3″ 272 x 480-pixel color screen
• Color icons for rich visual experience
• 20 physical keys on each page with dual-color LEDs
• Three independent control keys with illuminated LED for fast switching pages
• Supports up to 3 modules daisy-chain
• Stand with 2 adjustable angles

Technical Specifications

Display
4.3” 272×480-pixel color display with backlight
16-bit depth color
Three page views are possible
Different color icons for each function shown on the LCD
Features Keys and Indicator
20 physical keys each with a dual-color LED
40 additional keys through page switch
3 independent control keys with illuminated LED are used for fast switching pages
Programmable for shared line, BLF List, call park, conference, forward, group pickup, group listening, LDAP, XML Browser
Features
Wallpaper
Screensaver
Power saving
Avatar Display on SFB and UC platform (pending)
Stand with 2 adjustable angles
For support of two or three Expansion Modules, an external Yealink power adapter (5V/2A) is required.
Up to three EXP50 can be attached on any Yealink T5 Series IP phones
USB port (2.0 compliant) for data in and out
USB port (2.0 compliant) for
Wired/wireless USB headset
Wi-Fi through WF40, USB call recording through USB flash drive
Dimension (W*D*H*T)
196.5mm*124.0mm*137.5mm*42.6mm
Applies to Yealink T5 Series (SIP-T58V/SIP-T58A/SIP-T56A/SIP-T54S/SIP-T52S)
Operating temperature
-10~50 Degrees C (+14~122 Degrees F)
Operating humidity
10-95%
Package content
Yealink EXP50 Color-screen Expansion Module
Stand
Connecting Sheet
USB Cable
Screwdriver
Screws
Quick Start Guide
Qty/CTN: 10 PCS
N.W/CTN: 6.0 kg
G.W/CTN: 6.598 kg
Giftbox size
212mm*148mm*90mm
Carton Meas
480mm*310mm*228mm
